Product Introduction

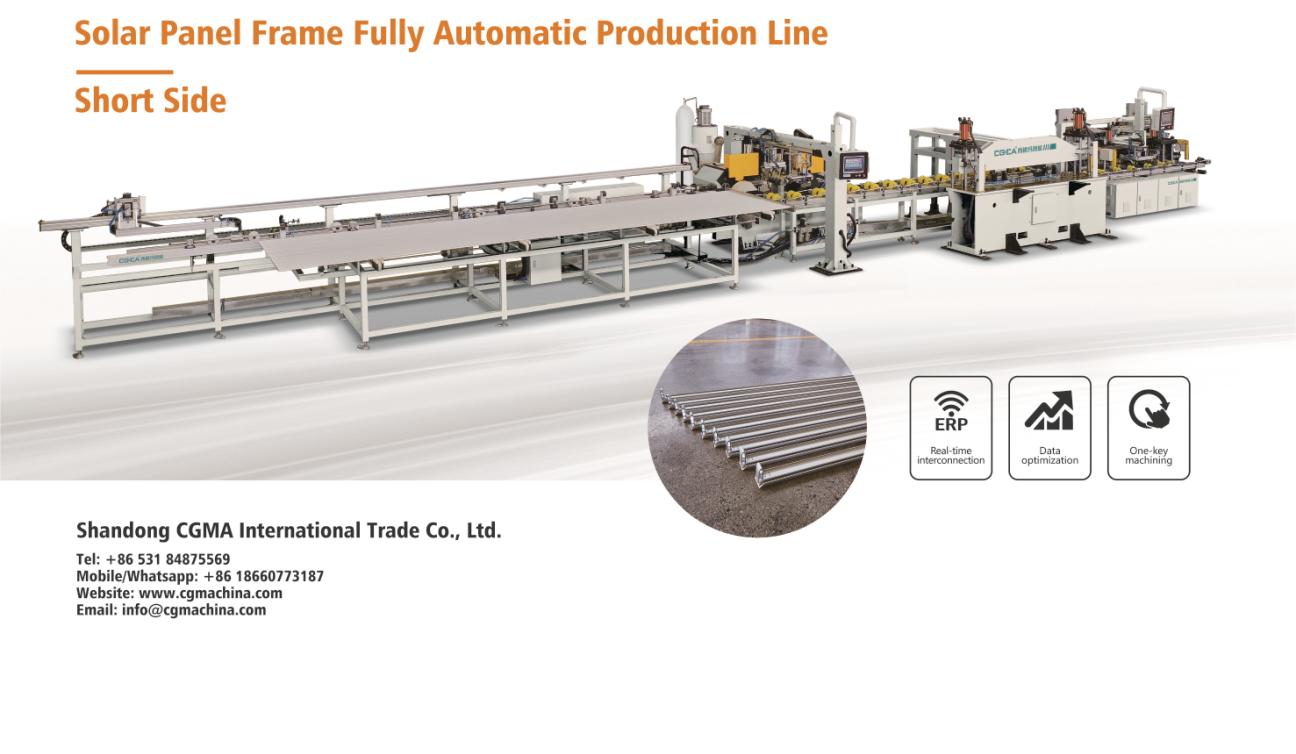

1.The production line features low power consumption, low noise and scrap automatic collection, which can be used to process profiles with film and non-film as well.
2.It can finish the length cutting at the cutting saw station, flushing holes, installation holes and grounding marks punching by a combination mold in one step at punching station, automatic insert the corner key and riveting at both end at the last step.
3.The production line is mainly including the following working stations:
◆ Profile loading station
◆ Profile feeding station
◆ Profile cutting station
◆ Flushing hole, installation hole, grounding mark punching station
◆ Corner key automatic inserting and riveting station
Advantages:
◆ Compatibility for different profiles
◆ High cutting accuracy
◆ High quality components, high position accuracy, stable operation
◆ No scratches, less burrs, high quality surface finish
◆ Easy operation, save labor costs
◆ Servo precise positioning to avoid waste of profiles
◆ Equipped with safety protection facilities and self-diagnosis functions
◆ Equipped with high efficiency dust collector, maintain clean working environment
Main technical parameter
|
No. |
Content |
Parameter |
|
1 |
Cutting length tolerance |
+/- 0.15mm |
|
2 |
Cutting angle tolerance |
45°: +/-0.15°, 55°: +/-0.15°, 55°: +/-0.15° |
|
3 |
Cycle time (Second) |
2.6 - 3.6 |
|
4 |
Feeding speed |
0 - 32000mm/min |
|
5 |
Single cutting quantity |
2 pieces |
|
6 |
Spindle speed |
0 - 4000r/min |
|
7 |
Power supply |
AC380V/50HZ |
|
8 |
Working air pressure |
0.6 - 0.8MPa |
|
9 |
Total power |
30KW |
|
10 |
Sawing angle |
35° - 55° |
|
11 |
Processing length range |
990 - 1600mm |
|
12 |
Max. Processing height |
12 - 40mm |
|
13 |
Sawing width |
25 - 40mm |
|
14 |
Repeat position accuracy |
≤ 0.2mm |
|
15 |
Overall dimension(LxWxH) |
195400x4800x2400mm |
