CNC Corner Connector Cutting Saw for Aluminum Win-door LJMJ-CNC-500

CNC Corner Connector Cutting Saw for Aluminum Win-door Featured Image

Short Description:

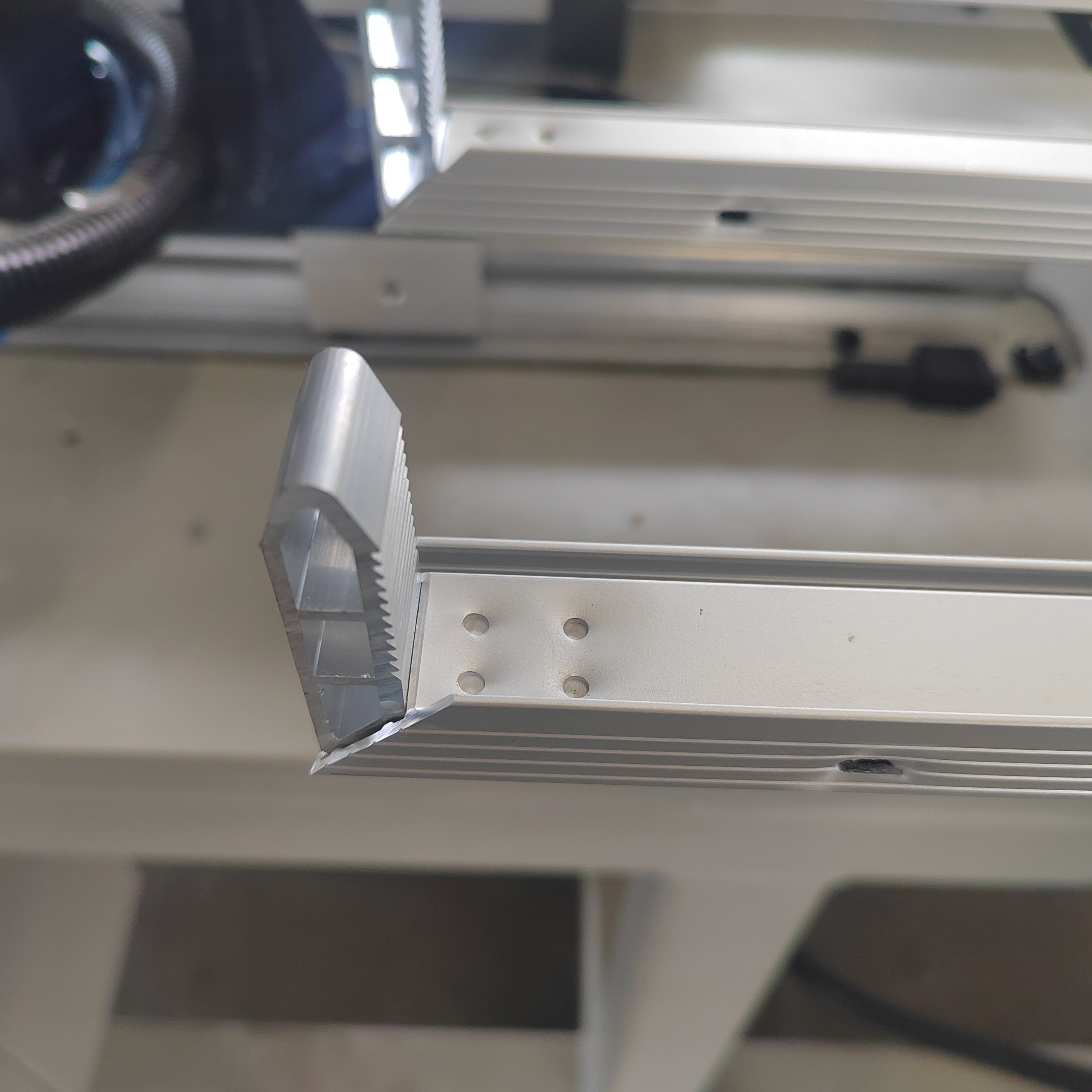

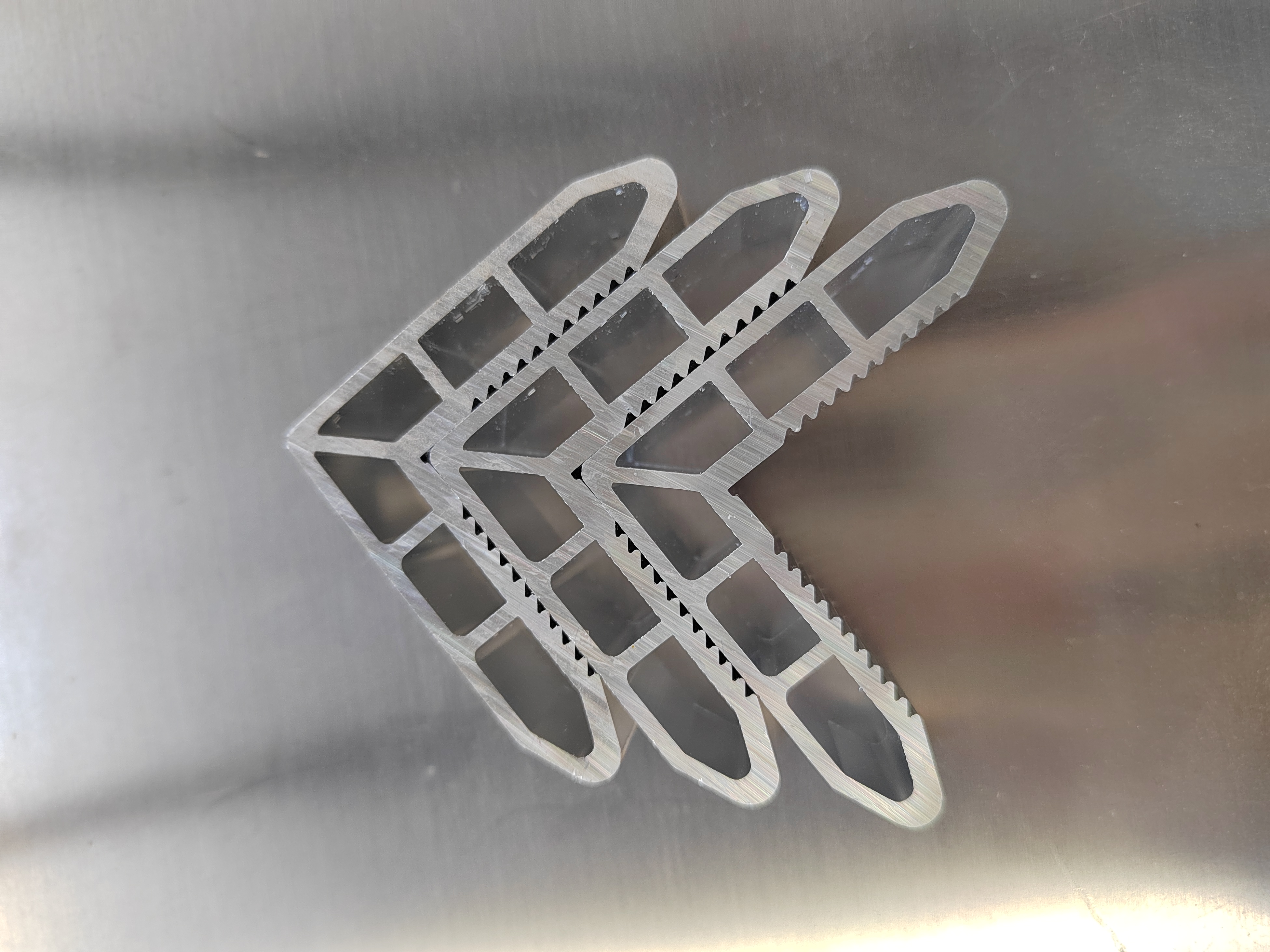

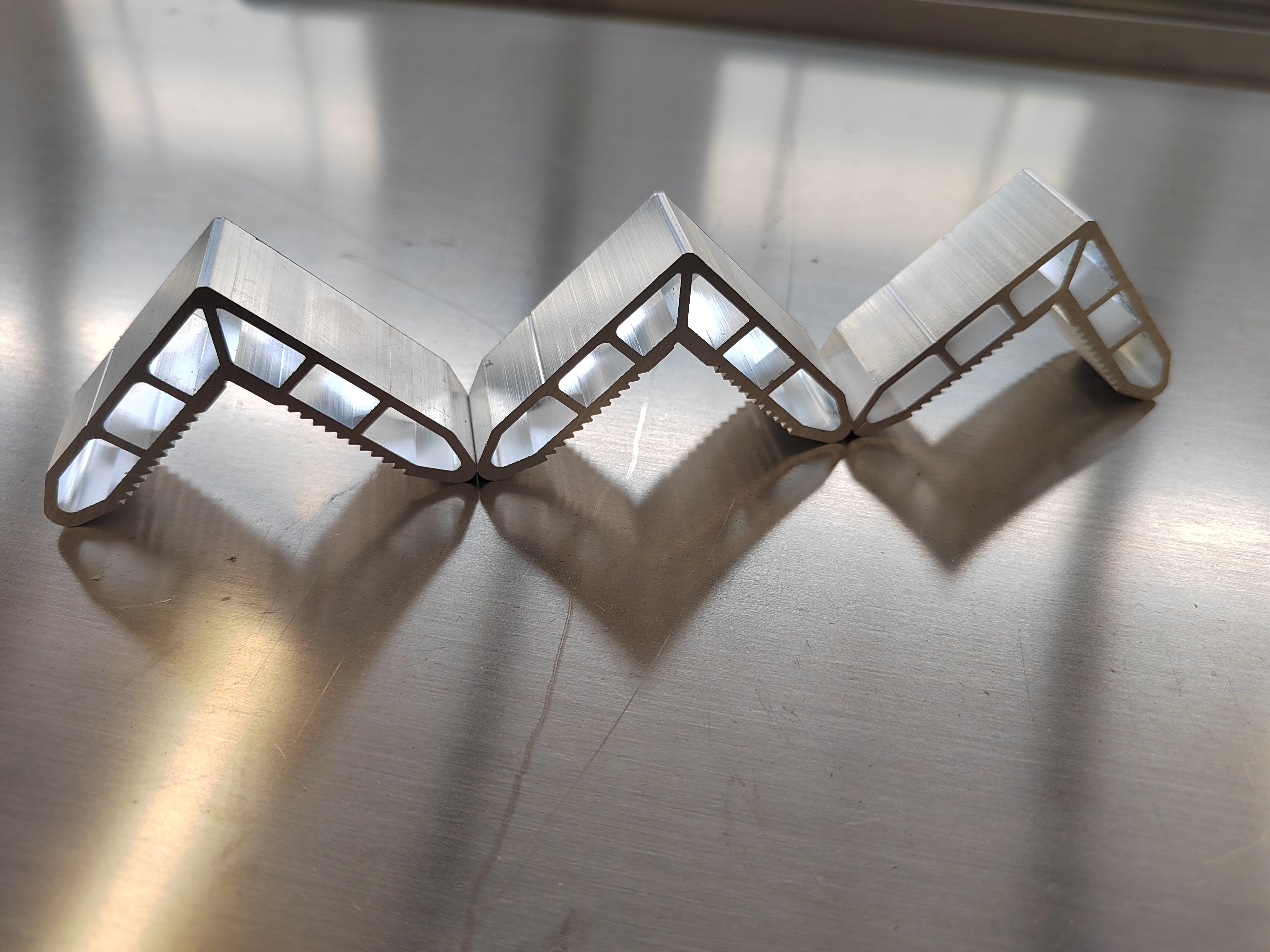

Professional for cutting aluminum corner connector in angle 90°.
It can cut two profiles at the same time.
The range of cutting length is 3mm～300mm.

Product Detail

Product Tags

Main feature:

1.Equipped with 3KW motor to drive the mechanical spindle rotation through belt driving.
2.It adopts servo motor drive, the ball screw drive feeding and fix the position, the accuracy of positioning is high.
3.The cutting speed is very fast, the rotation speed of the saw blade can up to 3200r/min, and cut two profiles at the same time.
4.The cutting range: cutting length is 3mm～300mm, cutting width is 265mm, cutting height is 130mm.
5.Adopts gas liquid damping cylinder pushes the saw blade cutting, Stable operation.
6.Equipped with the phase sequence protector, effective protection equipment.

◆Main technical parameters:

Item	Content	Parameter
1	Input source	AC380V/50HZ
2	Working pressure	0.5～0.8MPa
3	Air consumption	80L/min
4	Total power	5.0KW
5	Cutting motor	3KW, rotation speed 3200r/min
6	Saw blade specification	φ500×φ30×4.4 Z=108
7	Cutting section size（W×H）	265×130mm
8	Cutting angle	90°
9	Cutting accuracy	Cutting length error:±0.1mm, Cutting perpendicularity:±0.1mm
10	Cutting length	3mm～300mm
11	Dimension（L×W×H）	Main engine：2000×1350×1600mm Material rack：4000×300×850mm
12	Weight	580KG

◆Main components description:

Item	Name	Brand	Remark
1	Servo motor,servo driver	Schneider	France brand
2	PLC	Schneider	France brand
3	Low-voltage circuit break, AC contactor	Siemens	Germany brand
4	Button, Knob	Schneider	France brand
5	Proximity switch	Schneider	France brand
6	Air cylinder	Airtac	Taiwan brand
7	Solenoid valve	Airtac	Taiwan brand
8	Oil-water separator(filter)	Airtac	Taiwan brand
9	Rectangular linear guide rail	HIWIN/Airtac	Taiwan brand
10	Alloy tooth saw blade	AUPOS	Germany brand
Remark:when the supply is insufficient, we will choose other brands with the same quality and grade.
