CNC Corner Connector Cutting Saw for Aluminum Win-door LJJZ1B-CNC-500

CNC Corner Connector Cutting Saw for Aluminum Win-door Featured Image

Short Description:

1. Professional for cutting aluminum corner connector in angle 90°.

2. It adopts servo motor drive, the ball screw drive feeding and fix the position.

Cutting length: 3-600mm

Cutting section: 130x200mm

Overall dimension: 6000x1350x1600mm

Send email to us

Product Detail

Product Tags

Main Feature

1. High accuracy positioning: adopts servo motor drive, the ball screw drive feeding and fix the position.

2. Large cutting range: the cutting length range is 3mm~600mm, the width is 130mm, the height is 230mm.

3. Feeding stability: special feeding clamping manipulator, the corner connector is not contact with cutting vertical panel during feeding, so as to prevent the cutting surface meet the saw bit, ensure the feeding accuracy.

4. Big power: equipped with 3KW motor to drive the mechanical spindle rotation through belt driving.

5. Fast cutting speed: the saw blade rotation speed up to 3200r/min, saw blade linear speed is high, high cutting efficiency.

6. Stable cutting: adopts gas liquid damping device pushes the saw blade cutting.

Product Details

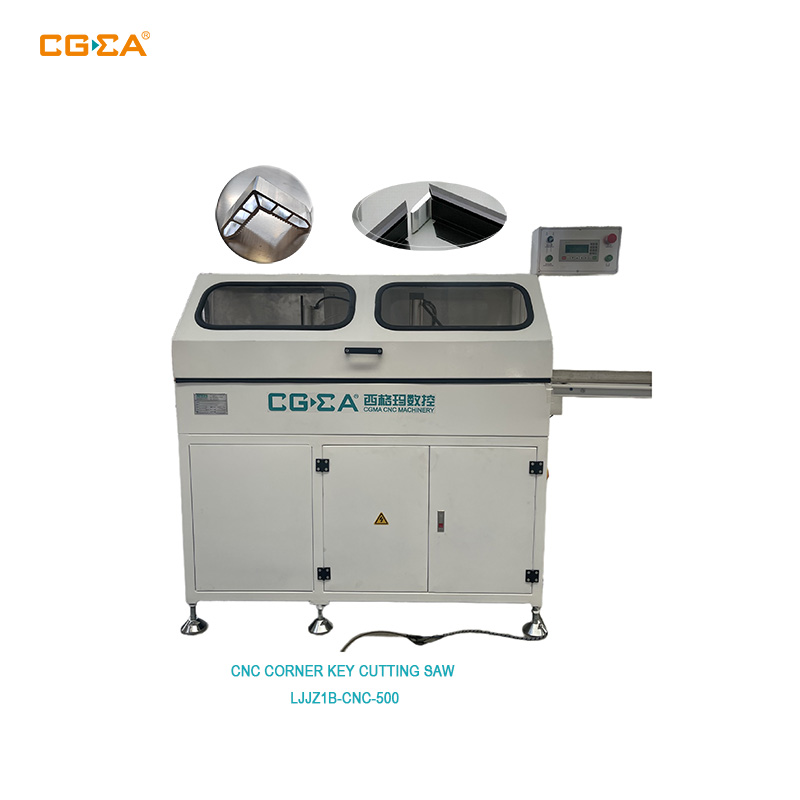

CNC Corner Connector Cutting Saw LJJZ1B-CNC-500 9

CNC Corner Connector Cutting Saw LJJZ1B-CNC-500 7

CNC Corner Connector Cutting Saw LJJZ1B-CNC-500 1

Main Technical Parameter

Item	Content	Parameter
1	Input source	AC380V/50HZ
2	Working pressure	0.5～0.8MPa
3	Air consumption	80L/min
4	Total power	3.75KW
5	Cutting motor	3KW, rotation speed 3200r/min
6	Saw blade Specification	φ500×φ30×4.4 Z=108
7	Cutting section size(W×H)	130×230mm
8	Cutting angle	90°
9	Cutting accuracy	Cutting length error:±0.1mm, Cutting perpendicularity:±0.1mm
10	Cutting length	3mm～600mm
11	Dimension(L×W×H)	Main engine:2000×1350×1600mm Material rack:4000×300×850mm
12	Weight	650KG

Main Component Description

Item	Name	Brand	Remark
1	Servo motor,servo driver	Schneider	France brand
2	PLC	Schneider	France brand
3	Low-voltage circuit break, AC contactor	Siemens	Germany brand
4	Button, Knob	Schneider	France brand
5	Proximity switch	Schneider	France brand
6	Air cylinder	Airtac	Taiwan brand
7	Solenoid valve	Airtac	Taiwan brand
8	Oil-water separator(filter)	Airtac	Taiwan brand
9	Alloy tooth saw blade	AUPOS	Germany brand
Remark:when the supply is insufficient, we will choose other brands with the same quality and grade.
