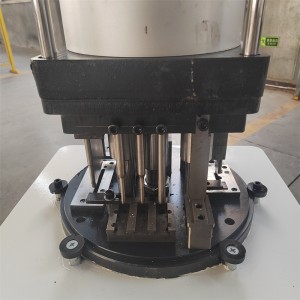

Aluminum Puching Machine LY-16

Short Description:

1. It is used to cut the angle for C grooves of the inwards and outwards opening sash, and punch the handle holes of the inwards opening sash, the connecting rod holes, universal water slots, and the mullion pin holes.

2. Four punching stations.

Send email to us

Product Detail

Product Tags

Main Feature

1. High efficiency: driven by hydraulic pressure, the Max. punching force is 48KN.

2. The punching speed is more 20 times than the ordinary milling machine, which can up to 20times/min.

3. The punching surface is smooth and work efficiency.

4. High pass rate: up to 99%.

5. Environmental protection: no scraps, no polluting the ground.

Main Technical Parameter

Item	Content	Parameter
1	Working pressure	0.6～0.8MPa
2	Air consumption	60L/min
3	Max. Punching force	16KN
4	Punching station quantities	4 station
5	Punching stroke	30mm
6	Punching mold size	340×240×500mm
7	Dimension(L×W×H)	340×240×1550mm
