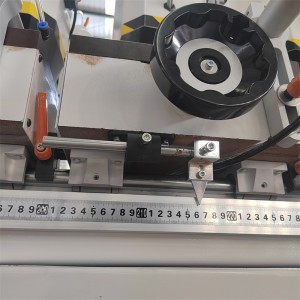

4-head Combination Drilling Machine for Aluminum Profile LZHZ4-13

Short Description:

1. This machine is similar with LZHZ6-13, it is used for drilling the processing holes of aluminum profile and installation holes of plastic steel win-door.

2. It can drill 4 different positions of holes at the same time.

Send email to us

Product Detail

Product Tags

Main Feature

1. Operation reliability: adopts PLC to control the operation of the equipment.

2. Large drilling range: the holes distance range is from 250mm to 5000mm.

3. High efficiency: can drill 4 different positions of holes at the same time, when the profile length is not more than 2500mm, it can be divided into two areas to process.

4. High accuracy: the motor spindle is connected with drilling bit through spindle box, the drilling bit swing small, the drilling accuracy is high.

5. High flexibility: the drilling head can realize single-action, double-action and linkage, and can also be freely combined.

6. Multi-function: through changing different drilling chunk, it can drill group holes, the Min. hole distance can up to 18mm.

7. Stable drilling: the gas liquid damping cylinder control the drilling bit to operate, and the speed is linearly adjustment.

Main Technical Parameter

Item	Content	Parameter
1	Input source	380V/50HZ
2	Working pressure	0.6～0.8MPa
3	Air consumption	80L/min
4	Total power	4.4KW
5	Spindle speed	1400r/min
6	Max. Drilling diameter	∮13mm
7	Two holes distance range	250mm～5000mm (choose suitable drilling chunk to satisfy the requirement of small hole distance, the Min. hole distance can up to 18mm)
8	Processing section size(W×H)	250×250mm
9	Dimension(L×W×H)	6000×1100×1900mm
10	Weight	1350KG

Main Component Description

Item	Name	Brand	Remark
1	PLC	Delta	Taiwan brand
2	Low-voltage circuit break, AC contactor	Siemens	Germany brand
3	Button, Knob	Schneider	France brand
4	Standard air cylinder	Easun	Chinese Italian joint venture brand
5	Solenoid valve	Airtac	Taiwan brand
6	Oil-water separator(filter)	Airtac	Taiwan brand
Remark:when the supply is insufficient, we will choose other brands with the same quality and grade.
